Desktop
Printing
Print method:
Thermal transfer/Direct thermal
Resolution:
203 DPI, 300 DPI
Max. print speed:
203.0
mm/s
Max. print width:
104.0
mm
Supplies
Min. label width with liner:
20.0
mm
Max. label width with liner:
108.0
mm
Min. label length:
6.4
mm
Max. label length:
172.7
mm
Max. label roll diameter:
213.0
mm
Max. ribbon roll length:
300.0
m
Ribbon winding direction:
IN, OUT
CPU, Memory
128 MB Flash, 128 MB RAM (DDR2)
Communication
Interfaces:
Ethernet, USB, USB host
Wireless interfaces:
Bluetooth, Wi-Fi
Software
Enclosed software:
PrintSet, SmartSystems™, Wavelink Avalanche™
Supported print languages:
EPL, IPL, Direct Protocol, DPL, XML, ZPL II
Environment
Temperature:
+5° - +40°C/ -40°C to +60°C
Humidity:
10% to 80% nekondensuojanti/ 85 %
Durability
Healthcare version:
yes
Physical
Dimmensions:

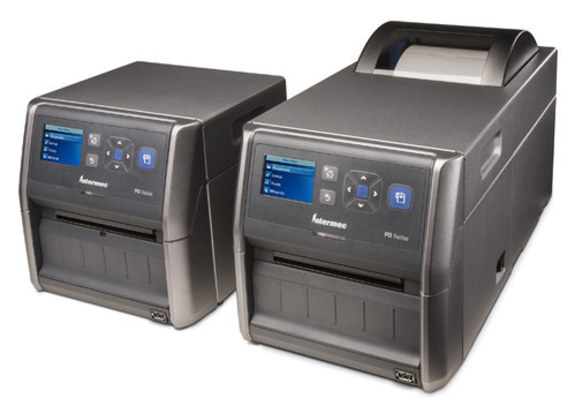

PD43 - 470 mm x 211 mm x 249 mm; PD43c - 236 mm x 211 mm x 205 mm
Weight:
8.4
kg
Warranty: 12 mėn. month
