Mobile

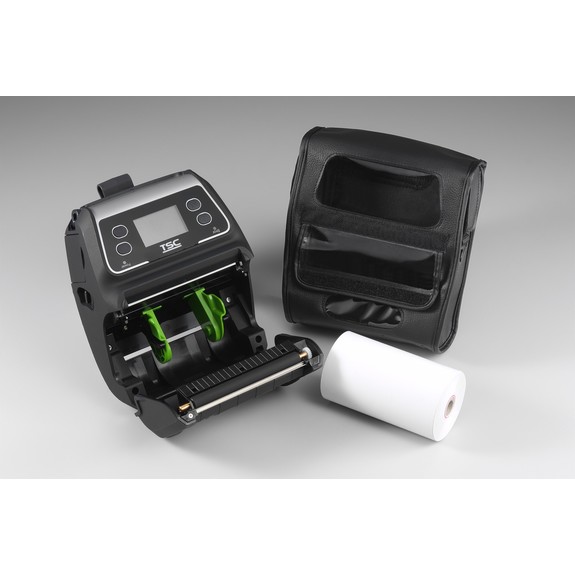

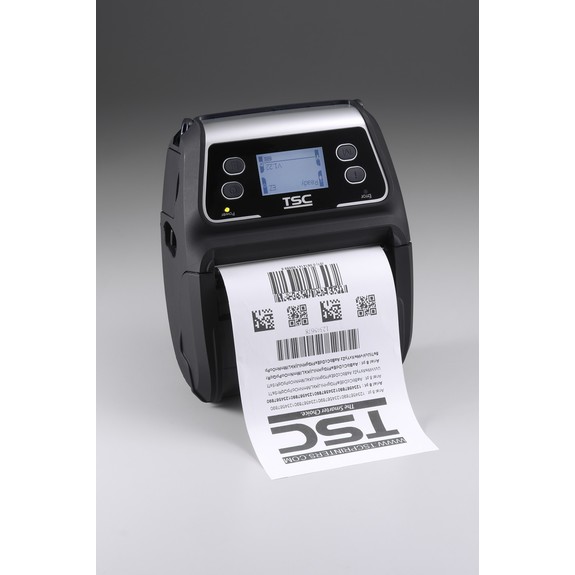

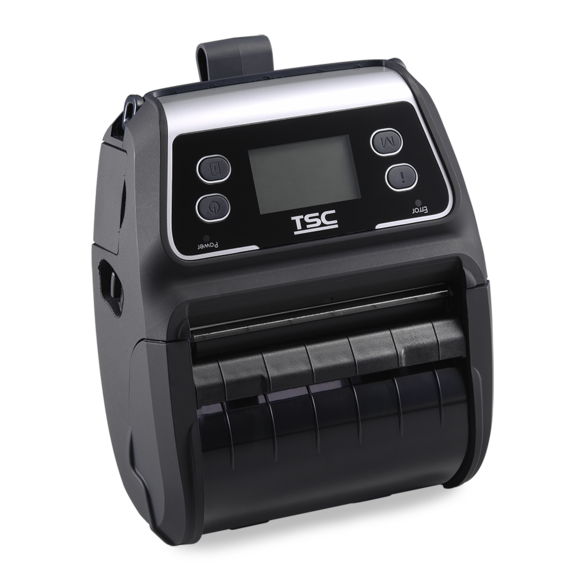

The Alpha-4L is a comfortable, light-weight printer capable of working with any mobile label, document or receipt printing application where you need labels printed wherever you are. The 4-inch direct thermal portable label printer features a rugged design and reliable performance that will continue to operate long after other printers have failed.
Printing
Print method:
Direct thermal
Resolution:
203 DPI
Max. print speed:
102.0
mm/s
Max. print width:
104.0
mm
Supplies
Min. label width with liner:
50.8
mm
Max. label width with liner:
112.0
mm
Min. label length:
25.4
mm
Max. label length:
152.4
mm
Max. label roll diameter:
67.0
mm
CPU, Memory
32-bit RISC CPU, Memory: 16 MB Flash, 32MB SDRAM, microSD card reader for Flash memory expansion, up to 4 GB
Communication
Interfaces:
RS232, USB
Wireless interfaces:
Bluetooth
Software
Supported print languages:
EPL, ZPL, CPCL, ZPL II, TSPL-EZ
Environment
Temperature:
-10°C - +50°C
Humidity:
10 – 90% (nesikondensuojanti)
Durability
IP class:
54
Physical
Dimmensions:
160 x 79 x 191.6 mm
Weight:
1.1
kg
Additional information
OPTIONS
• 802.11 b/g/n Wireless network
• 2” LCD display, 128 x 64 pixel w/white LED backlight
• Black mark reflective sensor position (default center, right, or left side)
• Linerless kit
• USB to RS-232 converter cable
• USB cable
• Li-ion battery
• IP54-rated environmental case
• Shoulder strap
• Charging station 1 cell or 4 cells (with changeable power connector)
• Vehicle power adapter
Warranty: 24 month
