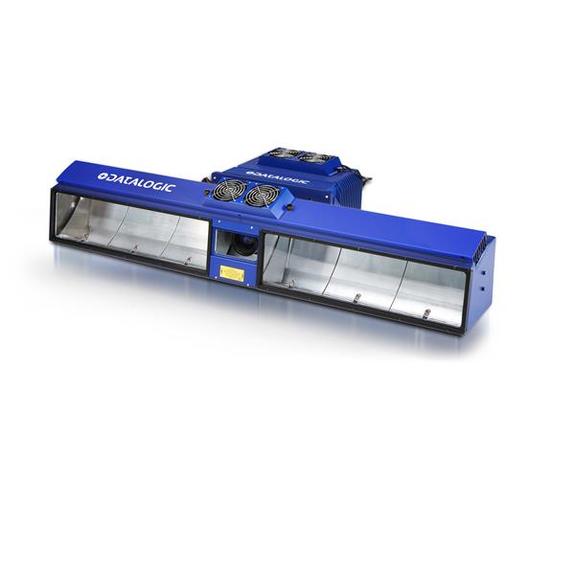

Datalogic AV7000 Datalogic AV7000

Datalogic AV7000

Add to comparison
Industrial Corded
The AV7000 camera system delivers 360-degree high speed package intelligence for any material handling system having conveyors, tilt trays and cross belt sorters. With superior optic performance, the AV7000 is the cornerstone of any data array designed to manage package identification for distribution centers, parcel facilities, and warehouses worldwide.
A high sensitivity CMOS sensor and patented lighting technology provide high definition, clear, crisp images, from one to six sides at high speeds. Images can be exported in full definition or compressed formats. Evolving from the award winning AV6010 and NVS9000 linear cameras, the new AV7000 is the next generation Auto-ID solution unlike any other available on the market today.
From boxes and parcels to flats and polybags, the AV7000 identification array guarantees superior performance on high speed conveyor systems, ensuring the best efficiencies for material handling solutions.
Reading
Supported codes: 2D
Scan engine: CMOS line scan 8192 px
Light source: LED
Scan speed: 33000 scans/s
Data Transfer, Communications
RS485 (IBM 46xx), Profinet, RS232, Ethernet
Environment
Temperature: 0° - 50° C
Humidity: 90% nesikondensuojanti
Durability
IP class: 65
Resistence to drops on concrete surface: m
Rugged: yes
Physical
Dimmensions: 1580 x 238 x 410
Weight: 11 kg
Warranty: 24 month
